Acier zingué

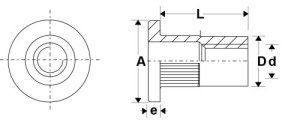

type d	L	Plage de sertissage	Diamètre de perçage	d	a	e	qtte boite carton	Cardboard box	qtte boite plast	Plastic box	qtte blister 1 2	Blister
M3 ACPC 20	9,0	0,3 - 1,5	5.0	4.90	8.00	0.80	500	171 103 201 C	-	-	-	-
M4 ACPC 25	10,0	0,3 - 2,0	6,0	5.90	9.00	0.80	500	171 104 251 C	500	171 104 251 CP	50	171 104 254 A
M4 ACPC 35	12,5	2,0 - 3,5	6,0	5.90	9.00	0.80	500	171 104 351 C	-	-	-	-
M5 ACPC 35	12,0	0,3 - 2,5	7,0	6.90	10.00	1.00	500	171 105 351 C	400	171 105 351 CP	50	171 105 354 A
M5 ACPC 50	15,5	2,5 - 5,0	7,0	6.90	10.00	1.00	500	171 105 501 C	-	-	-	-
M6 ACPC 30	14,5	0,3 - 2,5	9.0	8.90	13.00	1.50	250	171 106 301 C	250	171 106 301 CP	50	171 106 304 A
M6 ACPC 50	18,0	2,5 - 5,0	9,0	8.90	13.00	1.50	200	171 106 501 C	-	-	-	-
M8 ACPC 40	17,0	0,5 - 3,5	11,0	10.90	15.50	1.50	150	171 108 401 C	100	171 108 401 CP	50	171 108 404 A
M8 ACPC 55	19,5	3,5- 5,0	11,0	10.90	15.50	1.50	150	171 108 551 C	-	-	-	-
M10 ACPC 35	19,5	1,0 - 4,5	13,0	12.90	17.50	2.00	100	171 110 351 C	-	-	25	171 110 354 A
M10 ACPC 60	22,0	4,0 - 5,5	13,0	12.90	17.00	2.00	100	171 110 601 C	-	-	-	-
M12 ACPC 40	23,0	1,0 - 4,0	16,0	15.90	22.00	2.20	100	171 112 401 C	-	-	-	-

type d	L	Plage de sertissage	Diamètre de perçage	d	a	e	qtte boite carton	Cardboard box	qtte boite plast	Plastic box	qtte blister 1 2	Blister
M4 ACPB 25	16,5	0,3 - 2,5	6,0	5.90	9.00	1.00	200	172 ACP 040 251	-	-	-	-
M5 ACPB 30	18,0	0,5 - 3,0	7,0	6.90	10.00	1.20	200	172 ACP 050 301	-	-	-	-
M6 ACPB 30	20,5	0,5 - 3,0	9,0	8.90	12.00	1.50	200	172 ACP 060 301	-	-	-	-
M8 ACPB 35	21,5	0,5 - 3,0	11,0	10.90	15.00	1.50	200	172 ACP 080 351	-	-	-	-
M10 ACPB 35	29,0	1,0 - 3,5	12,0	11.90	16.00	1.70	200	172 ACP 100 351	-	-	-	-

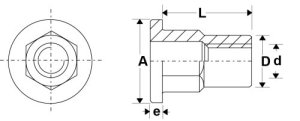

type d	L	Plage de sertissage	Diamètre de perçage	d	a	e	qtte boite carton	Cardboard box	qtte boite plast	Plastic box	qtte blister 1 2	Blister
M4 ACPSH 20	11,0	0,5 - 2,0	H 6,0	5.90	9.00	1.00	500	171 104 201 H	-	-	-	-
M5 ACPSH 30	14,0	0,5 - 3,0	H 7,0	6.90	10.00	1.00	500	171 105 301 H	-	-	-	-
M6 ACPSH 30	16,0	0,5 - 3,0	H 9,0	8.90	13.00	1.50	250	171 106 301 H	-	-	-	-
M8 ACPSH 30	18,0	0,5 - 3,0	H 11,0	10.90	16.00	1.50	200	171 108 301 H	-	-	-	-
M10 ACPSH 35	23,0	1,0 - 3,5	H 13,0	12.90	19.00	2.00	100	171 110 351 H	-	-	-	-

type d	L	Plage de sertissage	Diamètre de perçage	d	a	e	qtte boite carton	Cardboard box	qtte boite plast	Plastic box	qtte blister 1 2	Blister
M4 ACPTH 20	9,2	0,3 - 2,0	H 6,0	5.90	9.00	1.00	500	171 104 201-HEXAGO	-	-	-	-
M5 ACPTH 30	12,0	0,3 - 2,5	H 7,0	6.90	10.00	1.00	500	171 105 301-HEXAGO	-	-	-	-
M6 ACPTH 30	13,3	0,3 - 3,0	H 9,0	8.90	13.00	1.50	250	171 106 301-HEXAGO	-	-	-	-
M8 ACPTH 30	15,5	0,5 - 3,5	H 11,0	10.90	16.00	1.50	200	171 108 301-HEXAGO	-	-	-	-
M10 ACPTH 35	18,0	0,5 - 4,5	H 13,0	12.00	18.00	1.70	100	171 110 351-HEXAGO	-	-	-	-

type d	L	Plage de sertissage	Diamètre de perçage	d	a	e	qtte boite carton	Cardboard box	qtte boite plast	Plastic box	qtte blister 1 2	Blister
M4 ACF 50	13,0	3,5 - 5,0	6,0	5.90	9.00	1.50	500	171 404 501	-	-	-	-
M5 ACF 60	15,0	3,8 - 6,0	7,0	6.90	10.00	1.50	500	171 405 601	-	-	-	-
M6 ACF 60	17,0	3,8 - 6,0	9,0	8.90	12.00	1.50	250	171 406 601	-	-	-	-
M8 ACF 60	19,0	3,8 - 6,0	11,0	10.90	14.00	1.50	150	171 408 601	-	-	-	-
M10 ACF 60	20,5	3,8 - 6,0	12,0	11.90	15.00	1.50	100	171 410 601	-	-	-	-

type d	L	Plage de sertissage	Diamètre de perçage	d	a	e	qtte boite carton	Cardboard box
M4 ACFC 30	11.5	1.5 - 3.5	6	5.90	8.50	1.50	500	171 404 301 C
M5 ACFC 40	13.5	1.5 - 4.0	7	6.90	9.50	1.50	500	171 405 401 C
M6 ACFC 45	16	1.5 - 4.5	9	8.90	11.50	1.50	250	171 406 451 C
M8 ACFC 45	19	1.5 - 4.5	11	10.90	13.50	1.50	150	171 408 451 C
M10 ACFC 45	21	1.5 - 4.5	13	12.90	15.50	1.50	100	171 410 451 C

DEGOMETAL is able to consider any request for the manufacture of fastening products tailor-made.
The mechanical characteristics of our rivets can be adjusted according to your needs.
DEGOMETAL delivers perfectly adapted, high-quality solutions either directly off-plan or through an analysis of our customer's technical specifications.

YOUR PARTNER AND SPECIALIST IN COLD FORMING

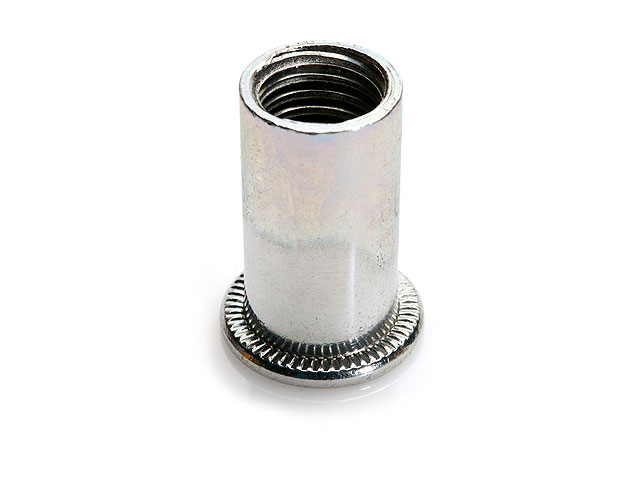

flat or countersunk head nut

ACPC

ACPB (BORGNE)

ACPSH

ACPTH

ACPTHB (BORGNE)

APPLICATIONS

ACF

ACFC

BLIND RIVETS

SPEED RIVETS

RIVETS

BLIND RIVET NUTS/BOLTS

LOCKBOLT FASTENING SYSTEM

RIVETS TOOLS

NUTS TOOLS

SCREWS

TIES

ACTIVITY

type d	L	Plage de sertissage	Diamètre de perçage	d	a	e	qtte boite carton	Cardboard box	qtte boite plast	Plastic box	qtte blister 1 2	Blister
	mm	mm	mm	mm	mm	mm	qté	ref	qté	ref	qté	ref
M3 ACPC 20	9,0	0,3 - 1,5	5.0	4.90	8.00	0.80	500	171 103 201 C	-	-	-	-
M4 ACPC 25	10,0	0,3 - 2,0	6,0	5.90	9.00	0.80	500	171 104 251 C	500	171 104 251 CP	50	171 104 254 A
M4 ACPC 35	12,5	2,0 - 3,5	6,0	5.90	9.00	0.80	500	171 104 351 C	-	-	-	-
M5 ACPC 35	12,0	0,3 - 2,5	7,0	6.90	10.00	1.00	500	171 105 351 C	400	171 105 351 CP	50	171 105 354 A
M5 ACPC 50	15,5	2,5 - 5,0	7,0	6.90	10.00	1.00	500	171 105 501 C	-	-	-	-
M6 ACPC 30	14,5	0,3 - 2,5	9.0	8.90	13.00	1.50	250	171 106 301 C	250	171 106 301 CP	50	171 106 304 A
M6 ACPC 50	18,0	2,5 - 5,0	9,0	8.90	13.00	1.50	200	171 106 501 C	-	-	-	-
M8 ACPC 40	17,0	0,5 - 3,5	11,0	10.90	15.50	1.50	150	171 108 401 C	100	171 108 401 CP	50	171 108 404 A
M8 ACPC 55	19,5	3,5- 5,0	11,0	10.90	15.50	1.50	150	171 108 551 C	-	-	-	-
M10 ACPC 35	19,5	1,0 - 4,5	13,0	12.90	17.50	2.00	100	171 110 351 C	-	-	25	171 110 354 A
M10 ACPC 60	22,0	4,0 - 5,5	13,0	12.90	17.00	2.00	100	171 110 601 C	-	-	-	-
M12 ACPC 40	23,0	1,0 - 4,0	16,0	15.90	22.00	2.20	100	171 112 401 C	-	-	-	-
